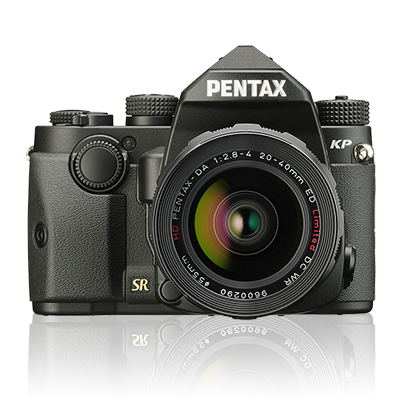

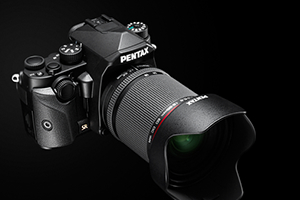

The PENTAX KP captures moments of wonder and excitement in magnificent, high-resolution images
The world is full of wonders, like the beautiful, breathtaking scenes and exciting, delightful moments you come across. The PENTAX KP captures these once-in-a-lifetime moments, faithfully and beautifully.
Its compact body is packed with state-of-the-art technologies including a high-performance optical viewfinder. It is also extremely resistant to environmental factors: rain, snow and freezing temperatures. Most of all, it boasts overwhelming image power, supported by approximately 24.3 effective megapixels and a top sensitivity of ISO 819200.
Regardless of time or location, the PENTAX KP is a new-generation digital SLR camera that captures the beautiful, fascinating moments, anywhere in the world you might be. It delivers true beauty of the world in high-quality digital images.
PENTAX has devoted much of its effort to reduce the size and weight of camera bodies, based on the belief that portability is an important factor in the camera’s overall performance. The new PENTAX KP packages an array of advanced functions in its compact, slim body to assure simple, carefree shooting not only during daily outings, but also on trips and outdoor activities.
Super-high-sensitivity, high-resolution imaging
The PENTAX KP couples a new-generation CMOS image sensor with the PRIME IV imaging engine and an accelerator unit to expand the upper limit of the sensitivity range without generating annoying noise. With a top sensitivity of ISO 819200, it assures super-high-sensitivity photography to deliver high-resolution, rich-gradation images with faithful reproduction of the subject’s texture and a sense of depth, even at higher sensitivities. It also produces high-quality images across the entire sensitivity range, from the lowest to the highest.
Shooting assist functions (SR II and exchangeable grips)
The PENTAX KP features the SR II (Shake Reduction II),* whose five-axis mechanism assures effective compensation for camera shake caused by pitch and yaw, horizontal and vertical shift, and roll, by as much as five shutter steps.** It also lets you exchange the grip to accommodate a particular lens or suit your preference of holding comfort or shooting style.
* The SR II can be activated only in viewfinder shooting.
** Measured in conformity to CIPA standards, using the smc PENTAX-DA 18-135mmF3.5-5.6 ED AL [IF]DC WR lens at a focal length of 135mm.
ISO 819200
High-resolution images captured at the highest sensitivity in PENTAX APS-C-format digital SLR history
The PENTAX KP couples a new-generation CMOS image sensor with the PRIME IV imaging engine and an accelerator unit to greatly expand the upper limit of its sensitivity range without generating annoying noise. With a top sensitivity of ISO 819200 (standard output sensitivity), it assures super-high-sensitivity photography to deliver high-resolution, rich-gradation images with remarkable reproduction of the subject’s texture and a true-to-life sense of depth, even at higher sensitivities. It also produces high-quality images across its entire sensitivity range — from the lowest to the highest.
By coupling the PRIME IV imaging engine with the exceptional data processing performance of its accelerator unit, the PENTAX KP achieves high-level noise reduction to realize flawless, high-speed operation as well as super-high-sensitivity, high-resolution imaging.
PRIME IV
Accelerator Unit

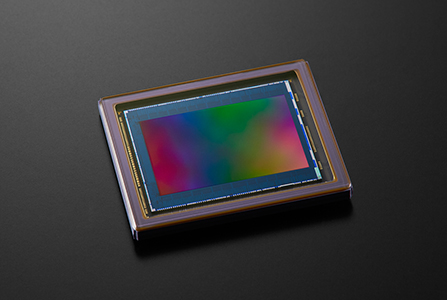

Approximately 24.32 effective megapixels and optical AA-filter-free design High-quality imaging supported by a new APS-C-size CMOS image sensor

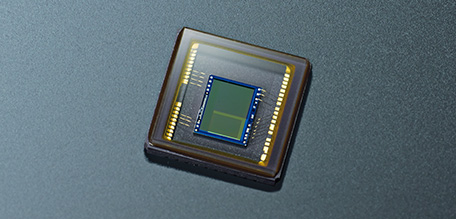

The PENTAX KP incorporates a new-generation, APS-C-size CMOS image sensor with approximately 24.32 effective megapixels to produce high-resolution images. It also features an optical design free of the optical AA (anti-aliasing) filter to optimize the image sensor’s outstanding imaging power. The result is sharp, fine-detailed images with a truthful sense of depth. By processing image data at a high readout speed of 14bit, it produces beautiful, rich-gradation images.
Pixel Shift Resolution System State-of-the-art technology to optimize the high-pixel sensor’s imaging power for true-to-life color reproduction
Driven by the camera’s in-body SR (Shake-Reduction) mechanism, this innovative system* captures four images of the same scene by shifting the image sensor by a single pixel for each image, then synthesizing them into a single composite image. Because it obtains all the color data in each pixel to compose the image, it delivers super-high-resolution images which are far more truthful than those captured by normal shooting processes. It assures true-to-life color reproduction without false colors, while effectively reducing annoying noise. When the Motion Correction function** is activated, it automatically detects the amount of the subject’s movement during exposure, and minimizes negative effects during the synthesizing process.
* When using this system, the user is advised to stabilize the camera firmly on a tripod, and use either the self-timer setting of the drive mode or a mirror lock-up function.
* This system may not produce the desired effect when the subject is in motion, or the camera is shaken during exposure.
** The Motion Correction function may not correct certain types of subject movement. It does not guarantee that the movement will be properly corrected for all subjects. The user may turn this function off when needed.
Pixel Shift Resolution：OFF
Pixel Shift Resolution：ON
AA-filter simulator PENTAX-original feature to minimize moiré and false colors
With the help of the SR mechanism, this simulator* applies microscopic vibrations to the image sensor unit during exposure to reduce adverse effects such as moiré and false colors to the same level as an optical AA filter. It lets you choose the desired visual effect based on your subject — between the filtering power of the AA simulator and the higher-resolving power of an AA-filter-free design.
* This simulator cannot be used in some shooting modes, and does not work with some functions.
* This simulator works most effectively with a shutter speed of 1/1000 second or slower.
[ Direct-access setting change ]
The AA-filter simulator is assigned to the Function dial as a default setting of the Smart Function. A single twist of the dial lets you quickly activate the simulator and select the desired simulator setting.
[ Available simulator settings ]
●Type 1: To maintain a good balance between image resolution and moiré reduction.
●Type 2: To place priority on moiré reduction.
●Two-image bracketing: To capture two images continuously in the order of OFF and Type 2.
Three-image bracketing: To capture three images continuously in the order of OFF, Type 1 and Type 2.

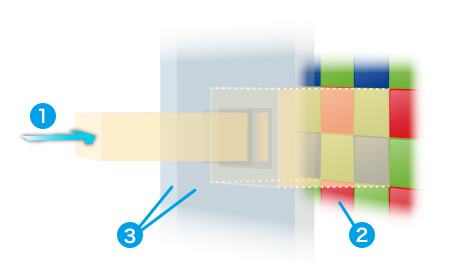

■ Principle of optical AA filter
Light
Color filter
AA filter

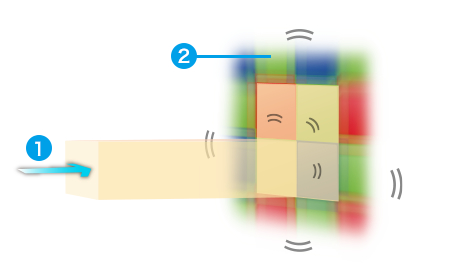

■ Principle of AA filter simulator
Microscopic vibrations applied at sub-pixel level
Fine Sharpness and Extra Sharpness Sharpness-enhancing tools to optimize image rendition with minute sharpness control
When enlarged to a certain size, a captured image can appear as a low-resolution image because the camera’s sharpness-control process outlines the subject with thick lines. To solve this problem, the PENTAX KP provides a pair of sharpness-enhancing tools, in addition to normal sharpness processing. The Fine Sharpness function outlines the subject with thinner, more natural lines than those created by normal processing to produce sharp, fine-detailed images. The Extra Sharpness function emphasizes the subject’s outline more prominently with much finer lines to capture high-quality, fine-textured images.
Lens Correction Effective reduction of distortion, chromatic aberration, vignetting and diffraction
The PENTAX KP provides a host of lens correction functions to effectively compensate for distortion, vignetting at the edges, and lateral chromatic aberration caused by specific lens properties. It also minimizes the drop in resolving power caused by diffraction when shooting at closed-down apertures. Based on the data obtained, it provides exposure compensation of up to approximately two aperture stops,* making it useful for applications such as scenic photography, where you must increase the depth of field without worrying about the effect of diffraction.
* Measured under RICOH in-house testing standards. This function can be used with all D FA-, DA- and DA L-series lenses, as well as most FA-series lenses (excluding some incompatible models).
Compact body with exceptional weather-resistant performance to assure solid, worry-free shooting even under demanding outdoor conditions
HD PENTAX-DA 20-40mmF2.8-4ED Limited DC WR Aperture: F4.0 ; Shutter speed: 1/80 sec. ; Exposure compensation: -0.7EV ; ISO sensitivity: 800 ; White balance: Auto ; Custom image: Bright
High-precision AE/AF operation at -3EV illumination Well-defined, sharply focused subjects even in the dark
Shooting in moonlight or candlelight confuses ordinary autofocus systems, while making manual focusing very difficult. Even with low-contrast subjects positioned under dim light, however, the PENTAX KP’s advanced auto-exposure, autofocus system captures the subject in sharp focus and optimum exposure. Coupled with its super-high sensitivity of ISO 819200, it lets you capture well-defined, sharply focused images of low-lit scenes (at an illumination level of -3EV*), without resorting to manual operation.
* Light metering measured at ISO 100 and with a 50mm F1.4 lens; focusing measured at ISO 100, at room temperature and with 25 middle sensors. * AF operation at -3EV illumination level is available when the phase-matching AF mode is selected during viewfinder shooting.

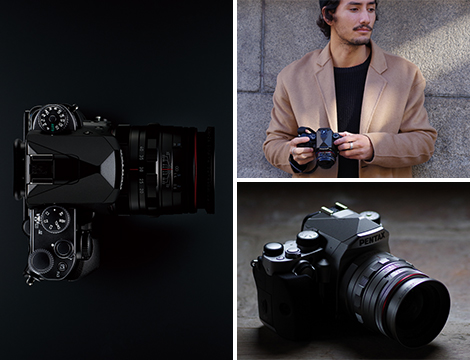

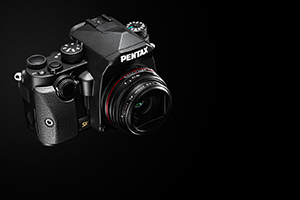

Compact, slim design Outstanding portability for casual photography regardless of time or location
PENTAX has devoted much of its effort to the downsizing of the camera body. By optimizing the design of internal components and mechanisms, it has succeeded in packaging exceptional imaging power, supported by original technologies and a host of advanced functions, in the PENTAX KP’s compact, slim body. It assures casual, carefree shooting not only during daily outings, but also on trips and outdoor activities.
Extra-durable, high-rigidity body

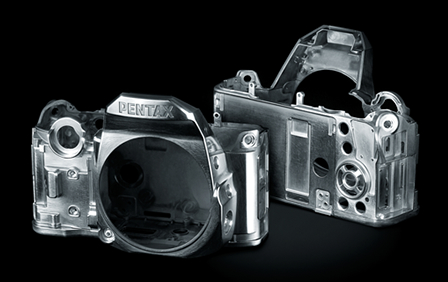

Magnesium-alloy casing to optimize durability and dependability
The PENTAX KP’s exterior casing is made of highly rigid, lightweight magnesium alloy with remarkable durability and outstanding electromagnetic-shielding performance. Coupled with a high-rigidity, corrosion-resistant metallic chassis, it forms an extremely durable, dependable body structure.

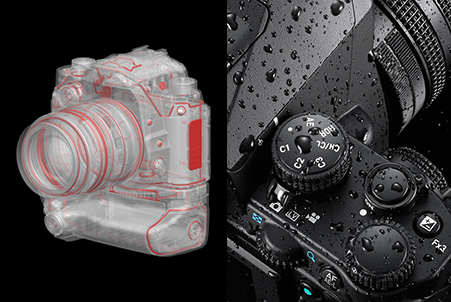

Dustproof, weather-resistant construction A highly environment-resistant imaging system with a weather-resistant lens
To prevent the intrusion of water and dust into the interior, the PENTAX KP features 67 sealing parts, applied to the control buttons and dials, covers and exterior joints. By mounting an AW- or WR-series lens* and the optional, weather-resistant D-BG7 battery grip, they form a highly airtight digital imaging system that assures dependable performance even under unfavorable weather conditions.*
* AW stands for All Weather (dustproof and weather-resistant construction), while WR stands for Weather Resistant (simplified weather-resistant construction).
** To prevent breakdowns or malfunctions, the user is advised to wipe rain, water and dust off the camera body and dry it completely.
*** Please read instruction manual carefully before use.

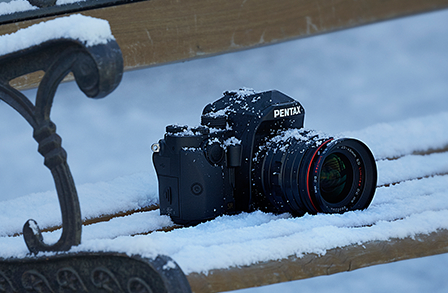

Excellent cold-resistant performance at -10°C Highly dependable operation even at freezing temperatures
Anticipating use in the bitter-cold winter or high-latitude, low-temperature locations, PENTAX has subjected the PENTAX KP to exacting environmental tests at temperatures as low as -10°C, and gathered a vast amount of data on operational precision, response and stability, as well as fluctuations in battery voltage.* As the result, it assures solid, trouble-free operation when recording valuable scenes.
* Battery performance declines as the temperature goes down. When shooting in cold environments, the user is advised to carry spare batteries, and to keep them warm by storing them in an inside pocket.

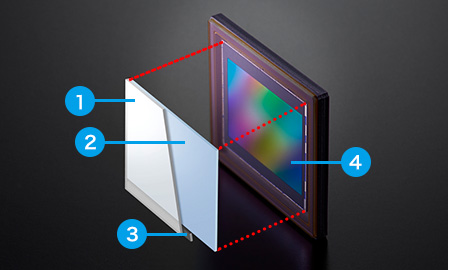

DR II (Dust Removal II) mechanism Effective removal of foreign particles from the image sensor
By applying ultrasonic vibrations generated by a piezoelectric element to the optical glass panel placed in front of the image sensor, this mechanism effectively removes dust particles clinging to the image sensor surface, and prevents annoying dust spots from appearing on captured images.
UV/IR-cut filter
Absorption-type IR-cut glass
Piezoelectric element
CMOS image sensor

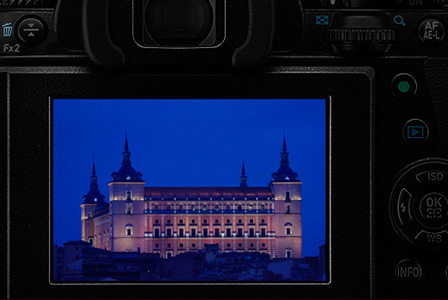

Outdoor-friendly monitor with a red-lighted display function
Easy brightness adjustment for comfortable monitor viewing
The PENTAX KP features an outdoor-friendly LCD monitor whose brightness level can be instantly adjusted to the desired level: brighter during outdoor shooting in sunshine, or dimmer during nightscape photography. Because the monitor settings are assigned to the Function dial as the default setting of the Smart Function, you can quickly set the desired brightness level with a single twist of the dial. This monitor also provides a Night Vision LCD Display function, which prevents eye strain or fatigue after they have become accustomed to a dark location during astronomical and nighttime photography. By assigning this function to the Fx1 button, you can instantly switch the display mode between normal display and Night Vision LCD Display with pushbutton ease.
Outdoor-friendly LCD monitor:+2
Outdoor-friendly LCD monitor:-2
Night Vision LCD Display

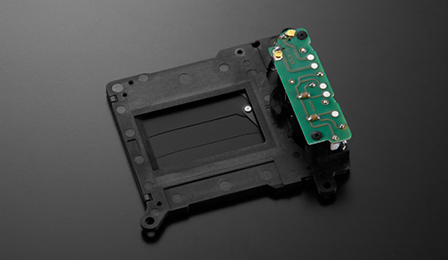

Extra-durable shutter unit Remarkable dependability and exceptional accuracy
The PENTAX KP’s shutter unit has proven its exceptional durability by withstanding a total of 100,000 shutter release actions. It assures outstanding operational precision and exceptional dependability, which are required for extended shooting sessions and demanded by the most exacting photographers.
Advanced image-capture functions The pinnacle of PENTAX’s devotion to innovative technology
HD PENTAX-DA 20-40mmF2.8-4ED Limited DC WR Aperture: F4.0 ; Shutter speed: 1/60 sec. ; Exposure compensation: -1.0EV ; ISO sensitivity: 1600 ; White balance: Auto ; Custom image: Bright

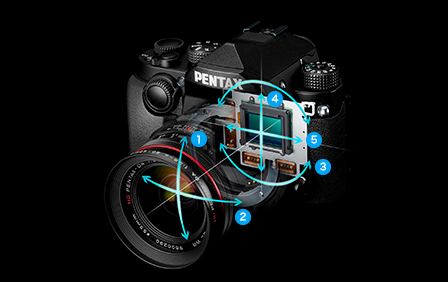

SR II in-body, five-axis shake reduction mechanism Effective camera shake compensation of up to five shutter steps
The PENTAX KP comes equipped with the innovative sensor-shift-type SR II (Shake Reduction II), which assures optimum compensation effect for all lenses. In addition to common camera shake caused by pitch and yaw, this five-axis mechanism also compensates for camera shake caused by horizontal and vertical shift (often generated in macro photography) and camera shake caused by roll, which is difficult to handle by lens-installed shake reduction mechanisms. Thanks to a wide compensation range of five shutter steps,* it benefits a number of handheld applications, such as when using a telephoto lens or shooting in poorly-lit locations, to capture sharp, blur-free images.
* Measured in conformity to CIPA standards, using the smc PENTAX-DA 18-135mmF3.5-5.6 ED AL [IF]DC WR lens at a focal length of 135mm.
[ Compatible with panning shots ]
When taking a panning shot, the PENTAX KP detects the direction of the panning action, then controls the SR II mechanism to compensate for all other affecting vectors. It captures beautiful, high-resolution images both in normal shooting and panning photography, without requiring any switching operation.
12Pitch and yaw 3Roll 45Horizontal and vertical shift
Smart Function
Easy customization of 15 different functions
The PENTAX-original Smart Function lets you select the desired function using the Function dial, then choose the desired setting using the setting dial. This innovative, two-dial operation system greatly improves the camera’s operability. In addition to four preset positions,* the Function dial also provides three custom positions (C1 to C3), to which you can assign the desired functions for instant, single-action switching.
* The following functions are pre-assigned to the preset positions: Disable, AE metering, HDR capture, and continuous shooting mode change.
[ Functions assignable to C1 to C3 positions ]
ISO sensitivity; exposure compensation; bracketing (with a choice of bracketing steps); Custom Image (default setting for C1); AF mode; AF active area; focus peaking; program line; shutter mode selection; recorded pixels; AA-filter simulator (default setting for C2); grid display; LCD display options; image magnification; outdoor view setting (default setting for C3)
1Function Dial 2Setting Dial

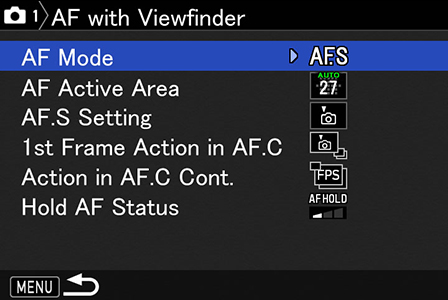

AF Customization
Optimum control of the autofocus system for active subjects
With the PENTAX KP, you can customize an autofocus action setting depending on the subject. It lets you set the timing of autofocus action from such options as focus/release-priority and advance-speed-priority modes. In the AF hold mode, it provides a choice of three settings based on the duration of AF hold, from the moment the subject leaves the in-focus point to the restart of autofocus operation.
Auto Horizon Correction and Composition Adjustment
Handy tools for easy, quick composition of well-balanced images
By taking advantage of its SR mechanism, the PENTAX KP features a pair of advanced image-capture tools. The Auto Horizon Correction function* rotates the image sensor to compensate for the camera’s horizontal tilt based on the data collected by the digital level, making it useful in handheld shooting. The Composition Adjustment function** makes minute adjustment to image composition with a horizontal/vertical shift or rotation of the image sensor. It comes in handy for Live View shooting using a tripod.
* Maximum compensation angle: approx. ±1° with SR activated; approx. ±1.5° without SR ** Maximum horizontal/vertical compensation range: ±1mm (±0.5mm along the axis of rotation); Maximum rotational compensation range: ±1°
ASTROTRACER
Effortless tracking and capture of celestial bodies using the SR mechanism
When the optional O-GPS1 GPS Unit is mounted,* the PENTAX KP captures beautiful images of celestial bodies without the aid of an equatorial platform. Based on the data obtained by the GPS unit, it calculates the movement of celestial bodies with great accuracy, then shifts the image sensor in synchronization with this motion. Since it captures stars without a streaking effect even during extended exposures, you can record faint stars as point images.
* The GPS unit must be calibrated before shooting. Click here or consult the operating manual for detailed calibration steps.
smcPENTAX-DA FISH-EYE 10-17mmF3..5-4.5ED[IF] Aperture: F4.0 ; Shutter speed: 120 sec. ; ISO sensitivity: 400
Compatibility with GPS unit and Electronic Compass
Automatic data recording of shooting location and camera position
With the optional O-GPS1 GPS Unit mounted, the PENTAX KP lets you attach Exif data to recorded images, including the location, direction and time of shooting using Universal Time Coordinated. It also features an Electronic Compass to display the direction the camera is facing (true direction after declination adjustment) on the LCD monitor, making it useful during shooting preparations before sunrise or for the accurate spotting of a target mountain in alpine photography.

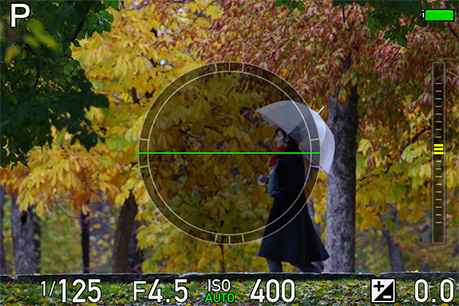

Digital Level
Accurate, real-time detection of camera tilt for stable image framing
The PENTAX KP’s Digital Level detects and displays the camera’s horizontal and vertical tilt and swing, making it easy to accurately level the scene. During viewfinder shooting, it indicates the horizontal tilt on a bar scale, allowing you to confirm the horizontal alignment of the image without taking your eye from the subject.

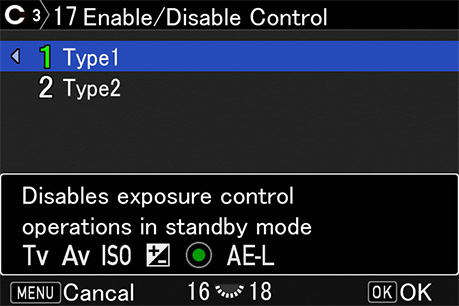

Operation Control Lock function
Prevention of accidental setting shifts
By assigning the Operation Control Lock function to the Fx button, you can lock certain control buttons and dials to prevent accidental setting changes. The Type 1 mode prevents unwanted shift of exposure settings, while the Type 2 mode temporarily inactivates the operation of the four-way controller and OK and MENU buttons. This safety device lets you concentrate on the shooting by eliminating worries about unexpected operational errors.
Exchangeable grips
Customization of the grip’s shape and hold, with a choice of three grips
The PENTAX KP lets you replace its grip to accommodate a particular lens or suit your preferences in holding comfort or shooting style.*
* The hex wrench needed for grip replacement is included in an optional grip package. * The Grip L is included in the optional D-BG7 Battery Grip package.
Grip L (O-GP1672; optional accessory)Featuring a large body for a firm hold of the camera, this grip is ideal for use with large-aperture telephoto lenses and high-magnification zoom lenses.
Grip M (O-GP1671; optional accessory)Excelling in portability and holding balance, this grip works well with standard zoom lenses.
Grip S (O-GP167; standard accessory)Sporting a slim body ideal for casual shooting, this grip makes a perfect partner for Limited-series lenses.

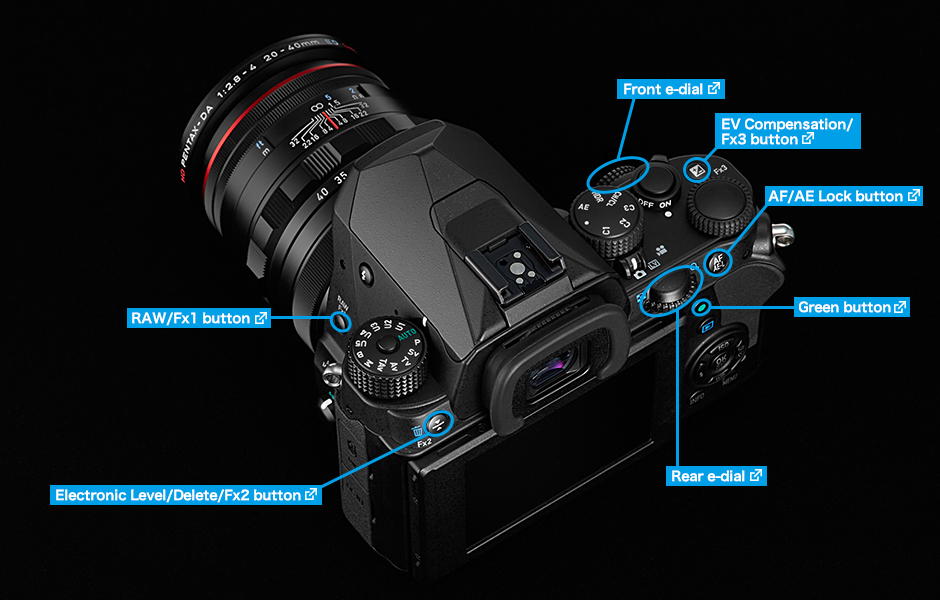

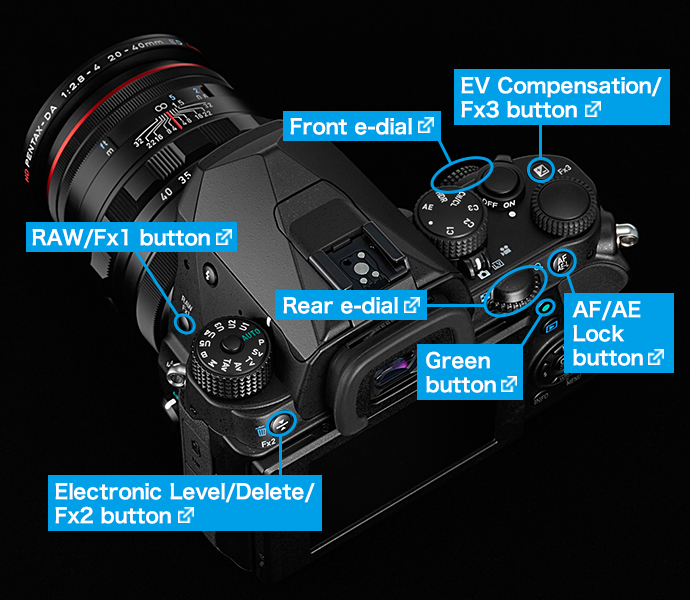

Control button customization More personalized operation with three Fx buttons
The PENTAX KP provides three Fx buttons to which you can assign frequently used functions. You can also customize the function of the AF/AE-L button, or assign a different set of functions to the front and rear e-dials and/or the green button for each exposure mode.
In addition to change the exposure compensation value, Sensitivity, Preview, AE Lock, Change AF Area, One Push File Format, Electronic Level and Operation Control Lock can be assigned.
X
AF/AE Lock button
AF button sets the operation for AF. AE Lock button sets the operation for AE.
X
Rear e-dial
Sets the operation for each exposure mode.
X
Electronic Level/Delete/Fx2 button
In addition to turn the Electronic Level on or off, EV Compensation, Sensitivity, Preview, AE Lock, Change AF Area, One Push File Format and Operation Control Lock can be assigned.
X
RAW/Fx1 button
In addition to change the file format temporarily, EV Compensation, Sensitivity, Preview, AE Lock, Change AF Area, Electronic Level, Wi-Fi, Night Vision LCD Display and Operation Control Lock can be assigned.
X
Green button
Resets the value being adjusted.
X

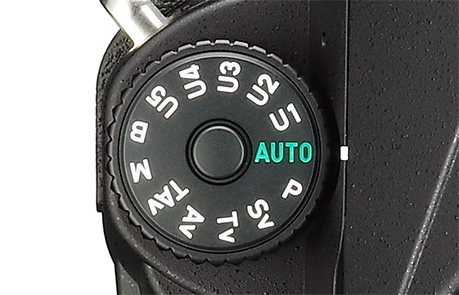

USER Mode (U1 to U5) Four preset modes to accommodate varying scenes
The PENTAX KP features a total of five USER Mode positions. You can assign a combination of frequently used functions to each of them based on your photographic theme or creative intention. Four preset combinations are already assigned to U1 to U4 positions for specific purposes such as scenic and macro photography, allowing you to quickly choose the best combination for a given scene or subject.

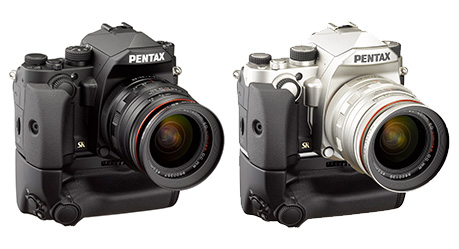

D-BG7 Battery Grip
Increased number of recordable images and enhanced operability of vertical-position shooting
Available as an optional accessory, the weather-resistant D-BG7 Battery Grip can be powered by the large-capacity D-LI90 Rechargeable Lithium-ion Battery for a great increase in the number of recordable images, in addition to the same standard rechargeable lithium-ion battery as the one used to power the camera body. It also provides a set of control buttons and dials to facilitate vertical-position shooting. It comes with the optional Grip L (O-GP1672).*
* The Grip L is ideally proportioned for use with the D-BG7. The user is advised to replace the standard Grip S with the Grip L when using the D-BG7.

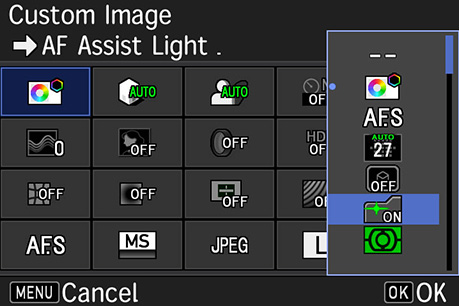

Control panel
Customization of screen layout to your preference
The PENTAX KP’s control panel displays a list of the available functions and their status on the LCD monitor, allowing you to confirm current settings at a glance and swiftly change them to accommodate your creative intention or shooting style. You can easily customize the layout to your preference by placing frequently used functions in the most accessible positions.
The pursuit of the highest imaging performance to capture once-in-a-lifetime moments
HD PENTAX-DA 21mmF3.2AL Limited Aperture: F8.0 ; Shutter speed: 1/640 sec. ; Exposure compensation: 0.0EV ; ISO sensitivity: 400 ; White balance: Auto ; Custom image: Natural

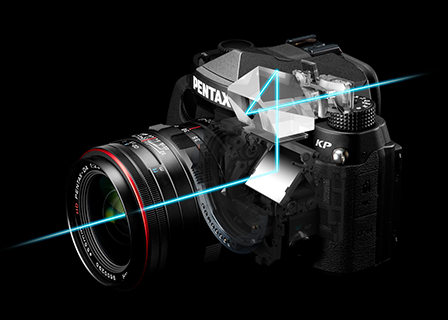

Optical viewfinder with glass pentaprism
Comfortable viewing of the subject with a nearly 100% field of view and approximately 0.95-times magnification
Thanks to a nearly 100-percent field of view, the PENTAX KP’s viewfinder provides an image field almost identical in size to that of the captured image. The optical design provides a real-time view of the subject, while its glass pentaprism delivers a large, well-defined image field at approximately 0.95-times magnification (with a 50mm F1.4 lens set at infinity). The Natural Bright Matte III focusing screen makes it easy to identify the in-focus point even during manual-focus operation. This standard focusing screen is replaceable with optional screens to accommodate specialized applications.

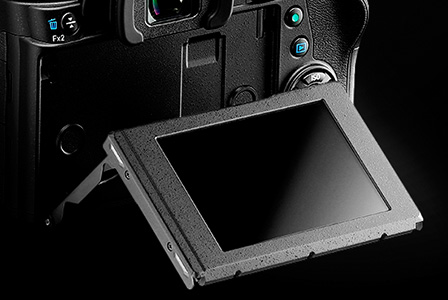

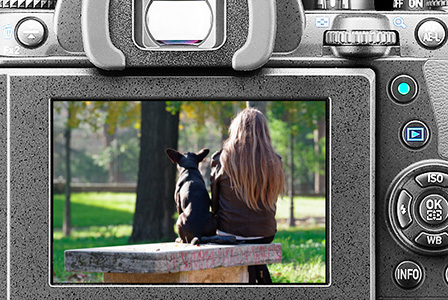

Tilt-type LCD monitor
A harmony of superb visibility and outstanding dependability
The PENTAX KP’s LCD monitor features a versatile tilt mechanism, which you can position at any desired angle for effortless, fatigue-free shooting in high- and low-angle photography. In addition to Air Gapless structure used to minimize internal reflections, its tempered-glass cover assures excellent visibility even in sunny outdoor locations, while effectively protecting it from scratches.
Live View shooting
An array of image-capture tools for effortless image framing
In the Live View mode, the PENTAX KP provides a wide range of convenient image-capture functions, including Grid Display, Digital Level, and Extract Edge to facilitate manual-focus operation. It also has a switching lever for still-image, Live View and movie shooting. By setting the lever to the LV position, you can quickly activate the camera in the Live View standby mode.
Main Live View functions
• AF modes: Face Detection, Tracking, Multiple AF Points, Select and Spot • Focus Assist modes: Highlight Edge and Extract Edge • Grip Display: a choice of five patterns and two colors (white or black) • Magnified view: a maximum magnification of 16 times • Digital Level display: two bar scales indicating horizontal and vertical tilt
Normal Monitor Display
Extract Edge

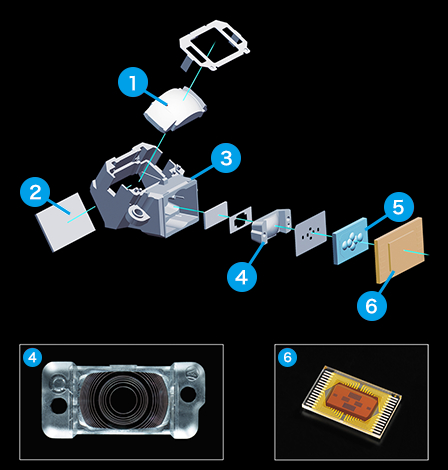

SAFOX 11
New-generation AF sensor module with a high-speed algorithm
The PENTAX KP incorporates the high-performance SAFOX 11 AF sensor module in its autofocus system. This dependable module features a diffraction lens to effectively compensate for chromatic aberration and assure pinpoint focus on the subject, even under adverse conditions such as when shooting against backlight or photographing high-contrast subjects.
High-speed AF algorithm
This latest autofocus algorithm assures a faster autofocusing speed than the one used in the conventional SAFOX 11 module. It lets you react more swiftly and effortlessly to unexpected shutter chances.
Condenser lens
Reflective mirror
AF unit frame
Diffractive lens
Separator lens
High sensitivity AF

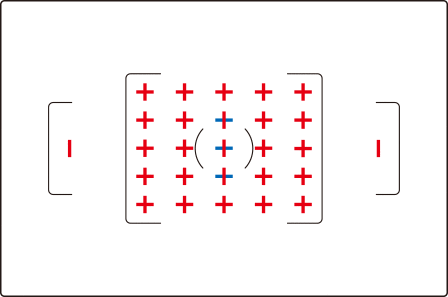

27-point AF system (with 25 cross-type sensors) Extra-accurate detection of the subject
Featuring 27 sensor points across the image field, the PENTAX KP’s sophisticated AF system not only captures the subject in sharp focus, but also automatically refocuses on a moving subject when it moves away from the initial point, with the help of neighboring points. Of the 27 points, 25 cross-type sensors are positioned in the middle to assure high-precision autofocus operation for all types of subjects.
Cross-shaped sensor
Liner sensor
F2.8 Luminous flux Liner sensor
F2.8 luminance flux linear AF sensors
Three center sensors — one in the middle and two others positioned above and below it — are designed to detect the luminance flux of an F2.8 lens for high-precision autofocusing. When using a very fast lens with a maximum aperture of larger than F2.8, these sensors assure focusing accuracy better than that of other sensors (designed for a F5.6 luminance flux).
AF area selection
The PENTAX KP lets you select the AF area and set it to the desired position in the image field, based on your application or subject. It provides a choice of AF modes: Auto (27 points), Zone Select (nine points), Select (a randomly selected single point), or Spot (the center point). It also features a select-area expansion mode to assist in the shooting of moving subjects.

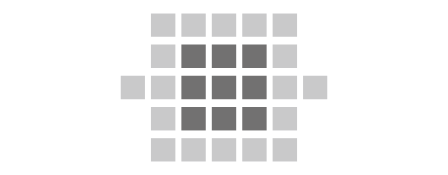

Zone Select
This mode lets you select a set of nine points forming a square zone, which then can be shifted to the desired position by moving the center point. It detects a subject located within this zone, captures it in pinpoint focus, and even tracks its movement — all automatically.

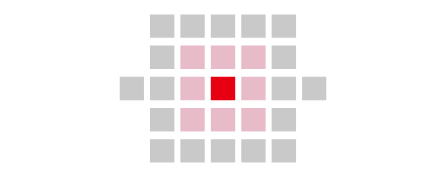

Select-area expansion
When you select one of the 27 sensor points, this function captures the subject in sharp focus using that point, with the help of the PENTAX Real-time Scene Analysis System. When the subject moves away, this system automatically tracks that movement and refocuses on the subject with the help of neighboring points.* It provides a choice of expansion area from eight, 24 or 26 points.
* This function is available when the camera’s AF mode is set to AF.C (Continuous AF) or AF.A (Auto Select AF).
Auto Tracking
Working with the PENTAX Real-time Scene Analysis System, this function accurately detects the subject’s motion based on various factors including color and speed, then keeps pinpoint focus on the subject throughout the imaging process by automatically shifting the in-focus point.*
* This function is available when the camera’s AF mode is set to AF.C (Continuous AF) or AF.A (Auto Select AF).

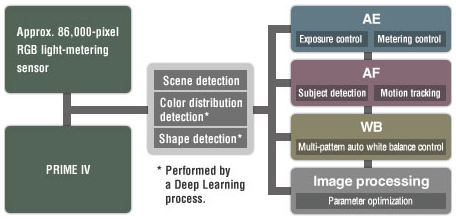

PENTAX Real-time Scene Analysis System
Optimum precision and stability of AE and AF systems for beautifully defined images
Working with the PRIME IV imaging engine and the approximately 86,000-pixel RGB light-metering sensor, this system features an advanced image detection algorithm developed by adopting a breakthrough artificial intelligence technology called deep learning. Based on factors such as brightness distribution in the image field and the subject’s shape, color and motion, it performs in-depth analysis of each individual scene, and selects the most appropriate finishing touch for a given scene or subject. It also works in tandem with other functions to optimize the accuracy and performance of the camera’s auto-exposure and autofocus systems.
Approximately 86,000-pixel RGB light-metering sensor
The PENTAX KP features an RGB light-metering sensor with approximately 86,000 pixels, which can detect the subject’s shape, color and motion with great accuracy to obtain a large volume of image data, then feed it to the PENTAX Real-time Scene Analysis System for extra-accurate scene assessment.
Scene Analyze AUTO
Advanced scene analysis mode developed from deep learning technology
Supported by the PENTAX Real-time Scene Analysis System, this mode automatically optimizes exposure settings, then selects the most appropriate finishing touch for each subject. When using the optical viewfinder, the system is assisted by an algorithm developed through the use of deep learning artificial intelligence technology to perform more complete scene assessment. Simply by setting the camera’s mode dial to AUTO (Scene Analyze AUTO), you are assured of the best finishing touch for each image.
Multi-mode AE system

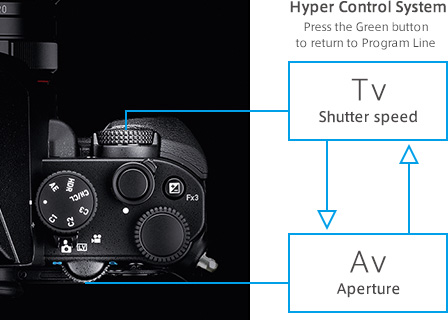

A combination of the PENTAX-invented Hyper exposure system and distinctive exposure modes
In addition to the conventional Av (Aperture-priority) and Tv (Shutter-priority) modes, the PENTAX KP provides PENTAX-original auto-exposure modes that let you express the subject’s motion and the depth of field in the way you want. By setting the Smart Function to the ISO mode, you can flexibly control three primary exposure parameters — aperture, shutter speed and ISO sensitivity – using the front and rear e-dials and the setting dial.
P (Hyper Program mode)
This mode lets you set the desired aperture and/or shutter speed using the e-dials, while retaining the proper exposure level. This eliminates the need for switching the mode dial to the Tv or Av position to achieve the desired visual effect, such as the rendering of subject motion or the depth of field.
M (Hyper Manual mode)
After setting the proper exposure level with a push of the green button, you can adjust the exposure to the desired level using the e-dials. This is a much faster and easier way to obtain the desired exposure than manually setting each exposure parameter while checking the exposure bar scale. By activating the AE-lock function, you can even shift aperture and/or shutter-speed settings while retaining the initial exposure level.
* Using AE-lock function together, you can even shift aperture and/or shutter-speed settings while retaining the exposure level of that time.
Sv (Sensitivity-priority mode)
The camera automatically selects a combination of aperture and shutter speed settings to obtain the proper exposure level, in relation to the user-selected ISO sensitivity.
TAv (Shutter-speed/Aperture-priority mode)
The camera automatically selects the ISO sensitivity to obtain the proper exposure level, in relation to the user-selected aperture and shutter speed settings.
B (Bulb mode)
This mode allows you to set any desired exposure duration. It also provides a Bulb Timer function to set the desired exposure time from 10 seconds to 20 minutes. This adds versatility and flexibility to bulb shooting.

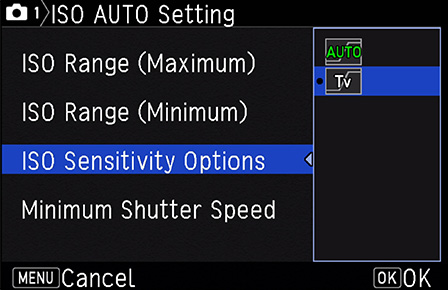

Automatic sensitivity settingWith a choice of the slowest shutter speed
In the ISO AUTO mode, you can choose the upper and lower limits of the sensitivity range. It also allows single-action setting of the slowest shutter speed, allowing you to make more minute sensitivity adjustment for difficult scenes that would be prone to camera or subject shake.
±5EV exposure compensation Effortless creation of dramatic high- and low-key images
Since the PENTAX KP provides an extra-wide exposure compensation range of ±5EV (in still-image shooting),* it allows you to capture extremely high- and low-key images without resorting to the manual exposure mode. It also comes in handy when capturing visual materials to compose an image with an HDR (High Dynamic Range) process, because its wide compensation range is very useful for shifting the exposure level of high-contrast scenes.
* When setting an exposure compensation range in the camera’s HDR mode, the maximum compensation range becomes ±3EV.
Depth-of-field Bracketing and Motion Bracketing Quick capture of three images with varied depth of field or subject motion
These new functions allow you to capture three different images of the same scene or subject with a single shutter release, without affecting the overall exposure level. Since they don’t require time-consuming manual operation to shift exposure settings, you can concentrate on a shutter chance and image composition.
[ Depth-of-field Bracketing ]
This function continuously captures three images with different depths of field by automatically raising or lowering the aperture setting in steps.
Aperture：F1.8, Shutter speed：1/5000sec,
ISO sensitivity：ISO100
Aperture：F5.0 Shutter speed：1/640sec,
ISO sensitivity：ISO100
Aperture：F14 Shutter speed：1/125sec,
ISO sensitivity：ISO200
[ Motion Bracketing ]
This function continuously captures three images with different expressions of motion by automatically raising or lowering the shutter speed in steps.
Aperture：F10, Shutter speed：1/4sec,
ISO sensitivity：ISO200
Aperture：F4.5, Shutter speed：1/30sec,
ISO sensitivity：ISO320
Aperture：F4.5, Shutter speed：1/250sec,
ISO sensitivity：ISO2500
Electronically controlled shutter unit with quiet, high-speed operation and top speed of 1/24000-secondIdeal for shooting in quiet locations, and for creating beautiful bokeh effects in sunlight scenes
The PENTAX KP provides a choice of mechanical and electronic shutter modes. In the electronic shutter mode,* the shutter unit produces very little noise and vibration during shutter-curtain operation, making it ideal for shooting in locations where silence is required. This mode also provides a top shutter speed of 1/24000 second, making it handy when you want to use an open aperture in bright, sunny locations. In Live View or mirror lock-up shooting, it provides even quieter, lower-vibration operation.
* The electronic shutter mode can be used with continuous shooting, bracketing, mirror lock-up, and multiple exposure functions. When the PENTAX Pixel Shift Resolution System is engaged, the camera’s shutter mode is locked to electronic shutter. * In the electronic shutter mode, the SR II mechanism and the AA-filter simulator are inoperable. * When shooting a fast-moving subject in the electronic shutter mode, the subject may appear to be distorted.
smcPENTAX DA★55mmF1.4
Aperture: F1.6 ; Shutter speed: 1/24000 sec. ; ISO sensitivity: 100
High-speed continuous shooting at approximately seven images per second Unfailing capture of the decisive moment of fast-moving subjects
The PENTAX KP provides high-speed continuous shooting at a top speed of approximately seven images per second. It also lets you choose a speed of approximately 0.8 or three images per second, allowing you to select the speed that best suits the movement of your subject.

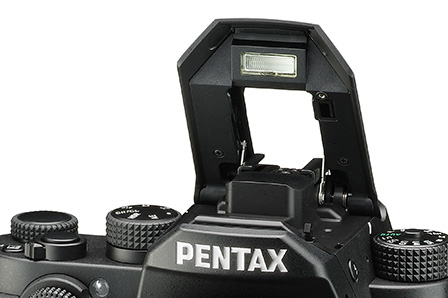

Wireless P-TTL Auto flashAutomatic control of flash discharge in complicated lighting conditions
The PENTAX KP features a built-in flash unit with a guide number of approximately six (at ISO 100/m). Using this flash unit or a dedicated accessory flash unit* mounted on the camera’s hot shoe as a controller, you can control the timing of flash discharge and adjust the illumination level from a distance. This simplifies complicated flash applications such as a multi-flash setup, while creating a true-to-life sense of depth and well-defined shadows.
* Compatible flash units: AF540FGZ, AF540FGZ II, AF360FGZ, and AF360FGZ II
IMAGE Transmitter 2 compatibilityTethered photography from a computer
By connecting the PENTAX KP via USB to a personal computer equipped with the IMAGE Transmitter 2 tethering software*, you can adjust the camera’s exposure settings, release its shutter while observing a Live View image, and confirm captured images on your computer. You can even program the system to automatically transmit captured images to your computer and save them in its storage for time-efficient operation.
* For proper use with the PENTAX KP, the software must be upgraded to the latest version.
An array of image composition functions and creative shooting tools for personalized photographic expressions
HD PENTAX-DA 21mmF3.2AL Limited Aperture: F3.2 ; Shutter speed: 1/40 sec. ; Exposure compensation: 0.0EV ; ISO sensitivity: 3200 ; White balance: Auto ; Custom image: Natural
Clarity control
PENTAX-original function for flexible recreation of subject texture
This function is very effective in recreating the glossy texture of metals, or the transparency of a clear sky or splashing water. Using the latest image-processing technologies, it lets you adjust the smoothness of the subject’s texture and the image’s clarity to the desired level in nine steps (between -4 and +4).
Clarity control： -4
Clarity control： 0
Clarity control： +4
Skin Tone correction
Restoration of healthy skin tones and smooth textures
This function* automatically locates the subject’s face and detects its skin area, then recreates a natural texture and healthy tone by adjusting the imaging parameters affecting the skin’s smoothness and texture. It provides a choice of two visual effects: Type 1 to adjust the color and brightness; and Type 2 to add the correction of texture.
* This function can be activated only when the camera detects a face in the image.
Skin Tone correction OFF
Skin Tone correction [ TYPE1 ]
Skin Tone correction [ TYPE2 ]
Custom Image
Flexible control of tone and shade to achieve your creative intentions
The PENTAX KP’s Custom Image function* provides 13 distinctive modes to apply your preferred finishing touch to a captured image, based on your subject or creative intentions. In the Auto Select mode, this function activates the PENTAX Real-time Scene Analysis System to assess each image, then automatically selects the best mode for a given scene or subject. Even when you come across unexpected shutter chances, it assures the optimum result for each image simply by releasing the shutter.
* When the exposure dial is set to AUTO, this function is locked to the Auto Select mode.
Custom Image modes
Auto SelectBrightNaturalPortraitLandscapeVibrantRadiantMutedFlatBleach BypassReversal FilmMonochromeCross Processing
HDR (High Dynamic Range)
Effortless mode switching via Smart Function
This function* delivers an image similar to the one detected by the naked eye, even when you’re dealing with extremely high-contrast scenes. It captures three images at different exposure levels and synthesizes them into a single composite image, while minimizing white-washed highlights and pitch-black shadows. In addition to the Auto and Advanced modes, it provides a choice of the effect’s intensity (Type 1, 2 and 3) and a range of exposure shifts (±1 EV, ±2 EV and ±3 EV). It also features the Automatic Position Adjustment function** to correct for misalignment of image composition of the three images, making it easier to use the HDR function in handheld shooting. Since the synthesized image can be saved on the camera as a RAW-format file, you can redevelop it later by using an in-body RAW-data development process to create a more satisfying photographic work.
* The HDR function cannot be used in some shooting modes, and is not compatible with some other functions. ** The Automatic Position Adjustment function may not be usable under certain shooting conditions.
White balance control Equipped with Multi-Pattern Auto White Balance mode for mixed light sources
The PENTAX KP provides an array of white balance modes to deal with various light sources, including the advanced Multi-Pattern Auto White Balance mode, which divides the image field into small segments and applies the best white balance mode to each segment. Whether it’s a scene with major color temperature discrepancies between the highlights and shadows, or a location with mixed light sources, this advanced mode assures lively, true-to-life color reproduction.
CTE (Color Temperature Enhancement)
Unique white balance mode to help express dramatic colors
In contrast to the standard Auto White Balance mode, which is designed to suppress the effect of a light source’s color on the color reproduction of the captured image, this PENTAX-original mode automatically adjusts the white balance setting to emphasize the image’s dominant color. It is useful in dramatizing sunrise and sunset scenes, or fresh green leaves in the spring.
AWB
CTE
Digital filters
A selection of filters to add creative visual effects
The PENTAX KP provides a choice of nine filters during shooting, and 21 filters during playback, to create unique visual effects on your images. You can apply as many as 20 filters to a single image to create a distinctive, personalized work of art.
Three ways to synthesize creative, eye-catching images
This function creates a single composite image from two to 2,000 images, with a choice of three synthesis modes: average, additive and comparative brightness. During Live View shooting, it displays a translucent image of the already captured images on the camera’s LCD monitor, allowing you to make precise alignment of the selected images.
Average
This mode synthesizes an image by averaging the exposure level of all selected images, allowing you to automatically create a normal-exposure image without adjusting the exposure level of the individual images.
Additive
This mode synthesizes an image by adding the exposure level of all selected images. For instance, by adjusting the exposure level of each image, you can clearly emphasize the brightness difference in the resulting image.
Comparative brightness
This mode compares the exposure level of all selected images, then synthesizes an image by selecting their highlight areas only. It is useful in overlaying images of such subjects as the moon, fireworks and illuminated buildings.
Average
Comparative brightness
Interval shooting Automatic timer function to capture a sequence of changes in the subject
This function is useful for recording the subject’s change over a long period of time, as it automatically captures a sequence of images at an interval selected by the user. You can choose an interval duration of less than two seconds to 24 hours, the number of images from two to 2,000, and even the starting time of interval shooting operation.
Interval Composite
This mode produces a single composite image by overlaying a series of images automatically captured at a fixed interval. As with the multiple exposure function, it provides a choice of three synthesis modes (average, additive and comparative brightness). It also allows you to save already captured images, even in the middle of shooting.
ASTROTRACER Interval
The ASTROTRACER function makes it easy to accurately track the movement of celestial bodies, without requiring an equatorial platform. The PENTAX KP features the new ASTROTRACER Interval mode for easy capture of astronomical images.
4K-resolution Interval Movie
This mode records still images of a slowly changing subject at a fixed interval, then synthesizes them into a single movie file. You can play back the high-quality, 4K-resolution (3840 x 2160 pixels) movie file,* as if fast-forwarding it through time on the camera’s monitor.
* When playing back the movie file on a device other than the PENTAX KP, the user is advised to use a PC operating environment supporting 4K-resolution movie playback.
*Depending on the browser, 4K movie is not able to see. Please look this 4K movie on the compatible browser listed in below.
- Google Chrome (all operating systems)
- Internet Explorer or Edge on Windows 8.1 or newer
- Safari on Mac OS X 10.10 or newer
- Firefox on Windows 7 or newer and on Mac OS X 10.10 or newer
Star Stream Movie Fantastic movies with beautiful star traces
This mode records star traces or illuminations in a 4K-resolution movie file. By combining the mode with the camera’s fade-out function, you can create an amazing movie with a dramatic effect of streaking light sources.

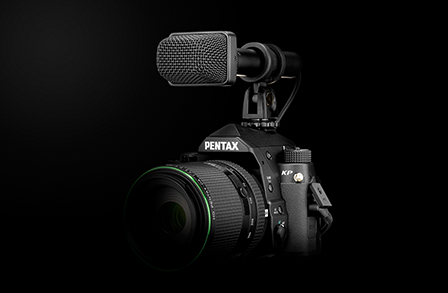

Movie recording
High-grade movie shooting only possible with a DSLR camera
The PENTAX KP captures high-resolution Full HD movie clips by taking full advantage of its lens interchangeability and large image sensor. During movie recording, you can use the Continuous AF (AF.C) mode,* or take advantage of such advanced features as aperture control function, SR mechanism, and creative image-capture tools. You can even record stereo sound with the built-in microphone and an external microphone, and adjust the audio level. When the Still-image/LV/Movie switch lever is set to Movie position, you can activate the camera in the movie recording standby mode.
* The aperture control function is available only when the HD PENTAX-DA 55-300mm F4.5-6.3ED PLM WR RE lens is mounted on the PENTAX KP.
Wi-Fi functions
Easy transfer and browsing of captured images on a smartphone
The PENTAX KP provides a set of wireless LAN (Wi-Fi) functions for operation using mobile devices such as smartphones and tablet computers. By installing the dedicated Image Sync application* in your mobile device, you can also browse captured images and remotely control camera operations from a distance.**
* Image Sync is required for browsing captured images. This software can be downloaded free of charge from the App Store for iPhone models, or Google Play™ for Android™ models. ** Access the RICOH IMAGING official website here or contact our customer service center for compatible operating systems.

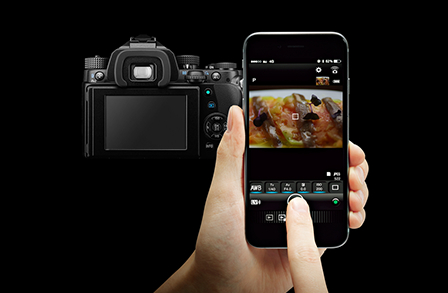

Image Sync Dedicated application for remote camera operations using mobile devices
When installed in a mobile device such as a smartphone or tablet computer, this dedicated application lets you operate the PENTAX KP from a distance using the mobile device.* You can remotely control camera operations such as exposure setting, focusing, shutter release and image confirmation.** It also provides a pair of new functions: Composition Adjustment to let you shift the image sensor’s position while keeping the camera firmly fixed on the initial spot, and Drive Mode change.
* Image Sync can be downloaded free of charge from the App Store for iPhone models, or Google Play™ for Android™ models. ** Access the RICOH IMAGING official website here or contact our customer service center for compatible operating systems.
In-body RAW data development
Application of the desired finishing touch without requiring a computer
The PENTAX KP provides in-body development of RAW-format files, with the developed files saved as separate JPEG or TIFF files. This lets you capture images more flexibly and creatively without the need of a computer. Since it provides a wide range of adjustable parameters, you can add the desired finishing touch to your image, regardless of the location.
Digital Camera Utility 5
Supplied software ensuring high-grade image data processing
Included in the PENTAX KP package, this software lets you browse through captured images, develop them into RAW-format files on a computer, and apply the desired finishing touch to your image. It also lets you develop RAW-format files captured by the advanced Pixel Shift Resolution System, or segment RAW-format image data obtained by the HDR function. Developed files can be saved as JPEG or TIFF files.

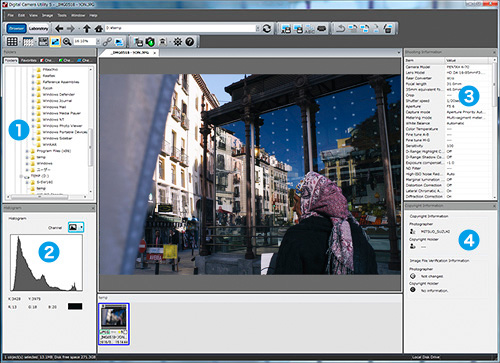

Main window structure (Browser mode)
Navigation panel
Control panel (image data)
Control panel (shooting data)
Control panel (copyright information)

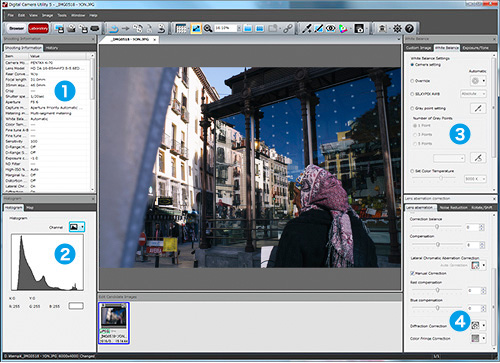

Main window structure (Laboratory mode)
Control panel (shooting data and history)
Control panel (image data and site map)
Control panel (Custom Image, white balance and exposure/tone)
Control panel (lens aberration compensation, noise reduction and rotation/shift)
* The user can customize display functions (show or hide) and the position at which the tab pages are displayed on the control panel.
** This is an image of Digital Camera Utility 5 screen.
